Trade Show |
 |
|
|
|

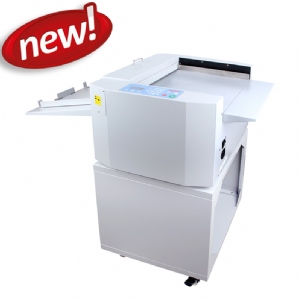

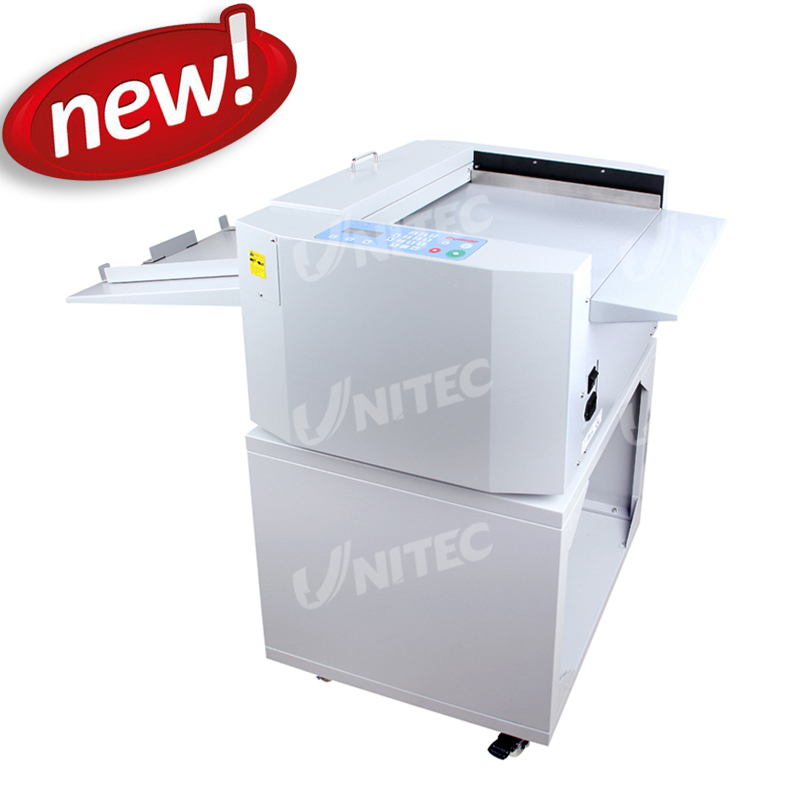

Crease 335 |
 |
|
|
|
¡ô Interchangeable tools
¡ô Speed faster than 1 sheet A4/second
¡ô Crease tools/Cross perforating bar/Linear tools
¡ô Floor space requirement less than 0.5 square meter
¡ô Combination +/- of creasing tool in one pass for book covers |
|
Easy-operating control panel
Easy exchangeable
Multiple design
Tools display
Single crease
Multi creases
Perforate
Crease + Perforate
Specification:
|
Model |
|
Crease 335 |
| In-Feed Paper Size |
Min:50mmx90mm Max:330mmx900m |
| Paper Weight |
100g-400g/0.1-0.4mm |
| Crease width |
Standard 1.0mm Option 0.6/1.2/1.4mm |
| Min gap between creases |
0.1mm |
| First line from lead edge |
1mm |
| Cross perforating bar |
Standard 12TPI Option 24TPI |
| Cross perforating |
Maximum 32 creases per sheet |
| Linear perforating tool |
Order Amount :Up to 8 sets 12/24TP |
| Speed |
40 Sheets/Min |
| In-feed Type |
Hand feed |
| Job Program |
30 user jobs |
| Out Put Capacity |
30mm |
| Operation Display |
LCD Panel |
| Power Supply |
110V/220V,50HZ |
| Weight |
42.0kgs |
| Dimensions(LxDxH) |
600mmx600mmx580mm |
|
|
|
