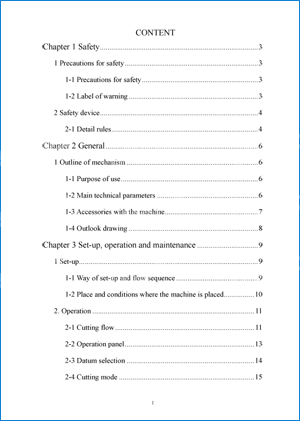

• Operation
  Manual
• Packing
• Demonstration
  Video

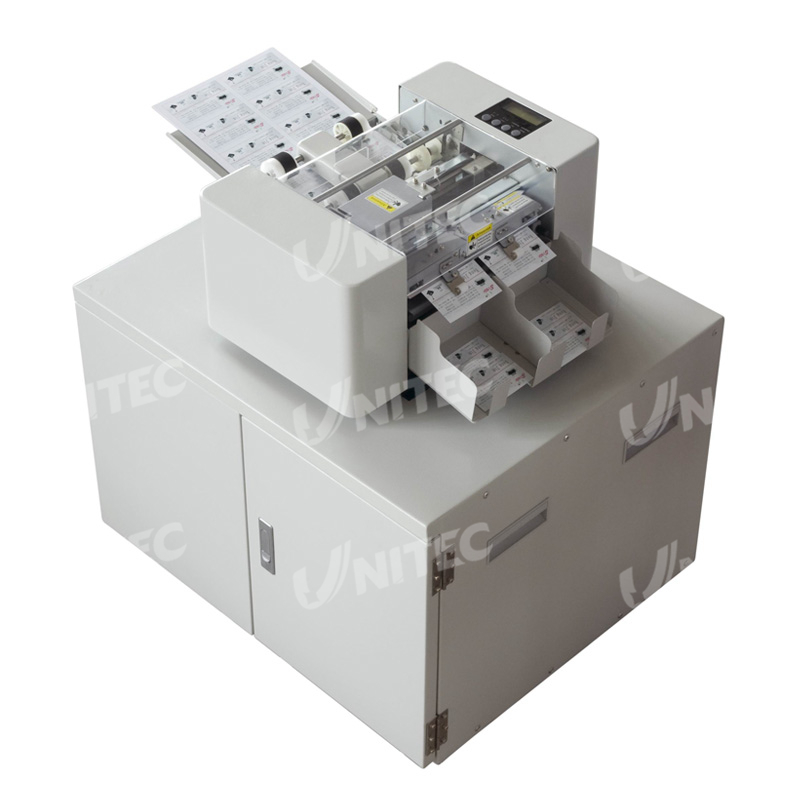

                  Optional  Cabinet

                         SSA-001-X





Specification:

Model		SSA-001-I	SSA-001-I-MS	SSA-001-I-HS
paper size		A4(297*210)mm	A4(297*210)mm	A4(297*210)mm
paper thickness		0.20mm-0.35mm 180g/m2-350g/m2	0.20mm-0.35mm 180g/m2-350g/m2	0.20mm-0.35mm 180g/m2-350g/m2
paper type		common paper & laminated paper	common paper & laminated paper	common paper & laminated paper
cutting speed		40 pieces/minute	80 pieces/minute	130 pieces/minute
loading		12sheets or total thickness is 3mm	12sheets or total thickness is 3mm	12sheets or total thickness is 3mm
long blade cutting size		40-250mm	40-250mm	40-250mm

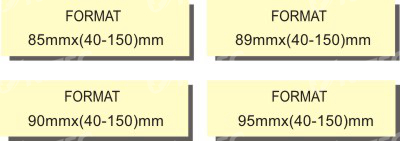

rotary blade cutting size		2-90mm  (norm size) 2-85mm  (select size) 2-89mm  (select size) 2-95mm  (select size) customize	2-90mm  (norm size) 2-85mm  (select size) 2-89mm  (select size) 2-95mm  (select size) customize	2-90mm  (norm size) 2-85mm  (select size) 2-89mm  (select size) 2-95mm  (select size) customize
dimensions		590×515×325mm	590×515×325mm	590×515×325mm
weight		19 kg	19 kg	19 kg
power supply		AC90-260V 50/60HZ 5A	AC90-260V 50/60HZ 5A	AC90-260V 50/60HZ 5A
