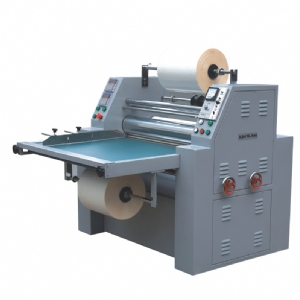

KDFM-720/ KDFM-900/ KDFM-1000 |
 |
|
|
|
¡ñ Fast Warm-Up Time
¡ñ Manually feed and manually separate
¡ñ One Side and double sided lamination
¡ôModel: KDFM-720
¡ôPacking: 1pc/wooden case
¡ôCarton Size: 114x104x140cm
¡ôG.W: 350.0kgs/ctn
¡ôModel: KDFM-900
¡ôPacking: 1pc/wooden case
¡ôCarton Size: 148x130x158cm
¡ôG.W: 380.0kgs/ctn
¡ôModel: KDFM-1000
¡ôPacking: 1pc/wooden case
¡ôCarton Size: 154x104x140cm
¡ôG.W: 570.0kgs/ctn
¡ôModel: KDFM-1200
¡ôPacking: 1pc/wooden case
¡ôCarton Size: 178x124x142cm
¡ôG.W: 700.0kgs/ctn
|
|
Specification:
|
Model |
|
KDFM-720 |
KDFM-900 |
KDFM-1000 |
KDFM-1200 |
|
Power Supply |
AC220V/50Hz |
AC380V/50Hz,3N |
AC380V/50Hz,3N |
AC380V/50Hz,3N |
|
Heating Power Consumption |
2400W |
3600W |
4800W |
5400W |
|
Motor Power Consumption |
400W |
550W |
750W |
1100W |
| Max.Sheet Format |
620(W)¡Á880(L)mm |
820(W)¡Á1040(L)mm |
900(W)¡Á1040(L)mm |
1100(W)¡Á1040(L)mm |
| Paper Thickness |
125¡«500g/m2 |
125¡«500g/m2 |
125¡«500g/m2 |
125¡«500g/m2 |
| Laminating Speed |
0-20m/min |
0-20m/min |
0-20m/min |
0-20m/min |
| Warm up time |
15min |
15min |
15min |
15min |
| Heating System |
Hot Roller |
Hot Roller |
Hot Roller |
Hot Roller |
|
Max.Operating Temperature |
130¡æ |
130¡æ |
130¡æ |
130¡æ |
|
Feeding |
Manual |
Manual |
Manual |
Manual |
|
Separation |
Manual |
Manual |
Manual |
Manual |
|
Main Roller Pressure |
Coil Springs |
Coil Springs |
Coil Springs |
Coil Springs |
|
Laminating Roller Surface |
Chrome |
Chrome |
Chrome |
Chrome |
|
Dimension(L¡ÁW¡ÁH) |
1150¡Á1100¡Á1400mm |
1450¡Á1100¡Á1400mm |
1550¡Á1100¡Á1450mm |
1750¡Á1250¡Á1450mm |
|
Weight |
260kgs |
380kgs |
480kgs |
600kgs |
|
|
|
